品牌:奥地利ferrobotics
发货:3天内
电话:18621713899
咨询发送询价

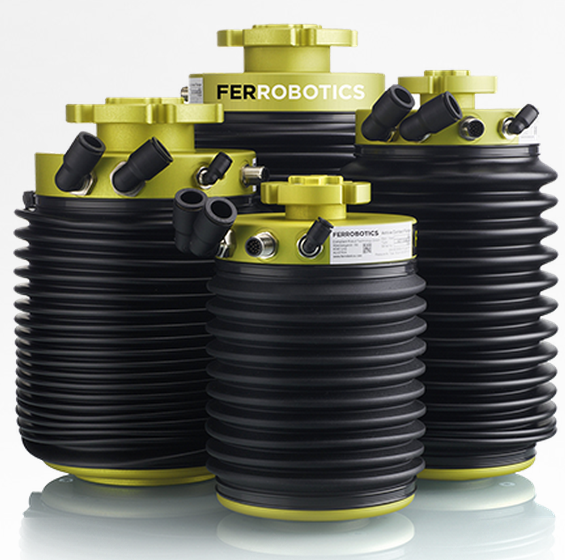

产品信息：奥地利ferrobotics-适合任何工业机器人的多功能末端工具
主动接触法兰适合每个机器人，如天鹅绒手套。 配备ACF的机器人能够可靠地测量其应用的力量，这意味着它们可以自己满足复杂部件的要求。 ACF将Active Compliant Technology的所有代码组合成一个普遍适用的加载项。 该技术能够以简单，可靠和经济的方式使接触敏感的操作和各种容差级别的应用程序自动化，从而为我们的客户提供强大的工具，以提高市场竞争力。
表面处理：研磨，抛光，清洗，层压，剥离，刷涂，去毛刺，压制
所有类型的材料：钢，铝，钛，镁，碳，塑料，木材，陶瓷，椰子纤维，石头
接触敏感处理：拾取，插入，粘接，接合，包装，质量控制，按压，部件测试，安装...
ACF XS
PRODUCT
ACF/110/01 XS
ACF/111/01 XSHD
Max. Force (push/pull) [N]
100
100
Stroke [mm]
11,5
11,5
Dead weight [Kg]
1,2
1,4
Max. overturning moment [Nm]
25
25
Max. Torsional moment [Nm]
35
35
Height at stroke = 0 mm [mm]
143,7
160,7
ACF STANDARD
PRODUCT
ACF/110/04
ACF/110/10
Max. Force (push,pull) [N]
100
100
Stroke [mm]
35,5
98
Dead weight [Kg]
3,2
3,5
Max. Overturning moment [Nm]
40
40
Max. Torsional moment [Nm]
30
30
height at stroke = 0 mm [mm]
190,5
253
ACF HD
PRODUCT
ACF/111/04HD
ACF/111/05HD
ACF/111/10HD
ACF/121/05HD
ACF/121/10HD
ACF131/05HD
ACF131/10HD
Max. Force (push/pull) [N]
200
250
250
500
500
800
800
Stroke [mm]
35,5
48
98
48
98
48
98
Dead weight [Kg]
3,5
4,9
6,1
5,1
6,3
5,3
6,5
Max. overturning moment [Nm]
250
350
350
350
350
350
350
Max. Torsional moment [Nm]
250
350
350
350
350
350
350
Height at stroke = 0 mm [mm]
200,5
236,7
286,7
236,7
286,7
236,7
286,7
| PRODUCT | ACF/110/01 XS | ACF/111/01 XSHD |
|---|---|---|
| Max. Force (push/pull) [N] | 100 | 100 |
| Stroke [mm] | 11,5 | 11,5 |
| Dead weight [Kg] | 1,2 | 1,4 |
| Max. overturning moment [Nm] | 25 | 25 |
| Max. Torsional moment [Nm] | 35 | 35 |
| Height at stroke = 0 mm [mm] | 143,7 | 160,7 |
| PRODUCT | ACF/110/04 | ACF/110/10 |
|---|---|---|
| Max. Force (push,pull) [N] | 100 | 100 |
| Stroke [mm] | 35,5 | 98 |
| Dead weight [Kg] | 3,2 | 3,5 |
| Max. Overturning moment [Nm] | 40 | 40 |
| Max. Torsional moment [Nm] | 30 | 30 |
| height at stroke = 0 mm [mm] | 190,5 | 253 |
| PRODUCT | ACF/111/04HD | ACF/111/05HD | ACF/111/10HD | ACF/121/05HD | ACF/121/10HD | ACF131/05HD | ACF131/10HD |
|---|---|---|---|---|---|---|---|
| Max. Force (push/pull) [N] | 200 | 250 | 250 | 500 | 500 | 800 | 800 |
| Stroke [mm] | 35,5 | 48 | 98 | 48 | 98 | 48 | 98 |
| Dead weight [Kg] | 3,5 | 4,9 | 6,1 | 5,1 | 6,3 | 5,3 | 6,5 |
| Max. overturning moment [Nm] | 250 | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. Torsional moment [Nm] | 250 | 350 | 350 | 350 | 350 | 350 | 350 |
| Height at stroke = 0 mm [mm] | 200,5 | 236,7 | 286,7 | 236,7 | 286,7 | 236,7 | 286,7 |
