品牌:kimray凯姆雷
最大工作压力:300psig
电话:13122118801
咨询发送询价

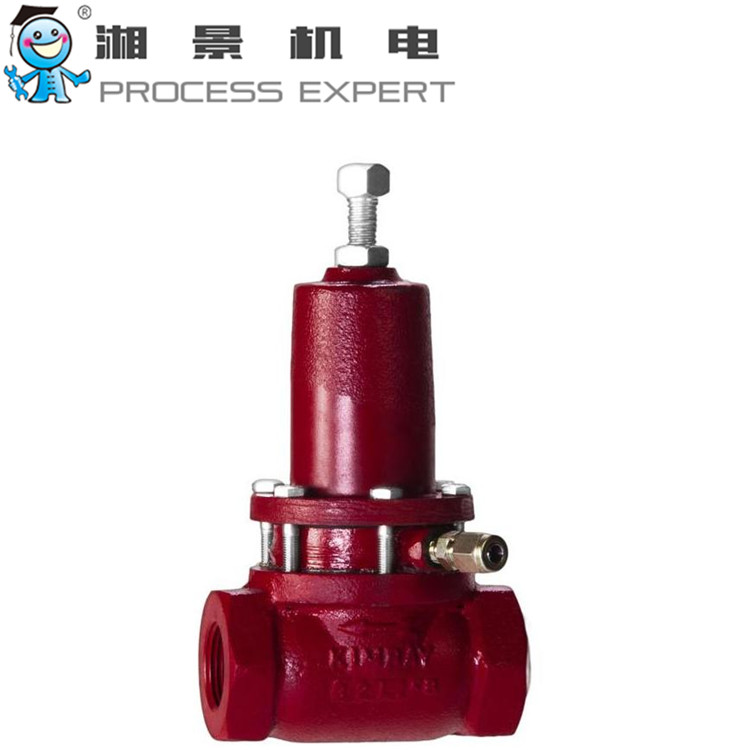

ABC2 130 SMT ADAB-D
Commonly used as a Burner Valve or Liquid Dump Valve for low pressure vessels
Specifications
- Connection Size: 1 "
- Connection Type: Female NPT
- Body Style: Through Body
- Body Material: Cast Ductile
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 0.5 "
- Trim Type: Equal Percentage
- Seal Class: Class VI
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 300 psig
- Actuator Spring Nominal Pressure: 40 psig
- Valve Fail Position: Closed
- Operation: Pneumatic
- Catalog Page: E2:100.2
- Face-to-Face Length: 4.38 "
- Repair Kit P/N: RHE
