品牌:kimray凯姆雷
最大工作压力:4000psig
电话:13122118801
咨询发送询价

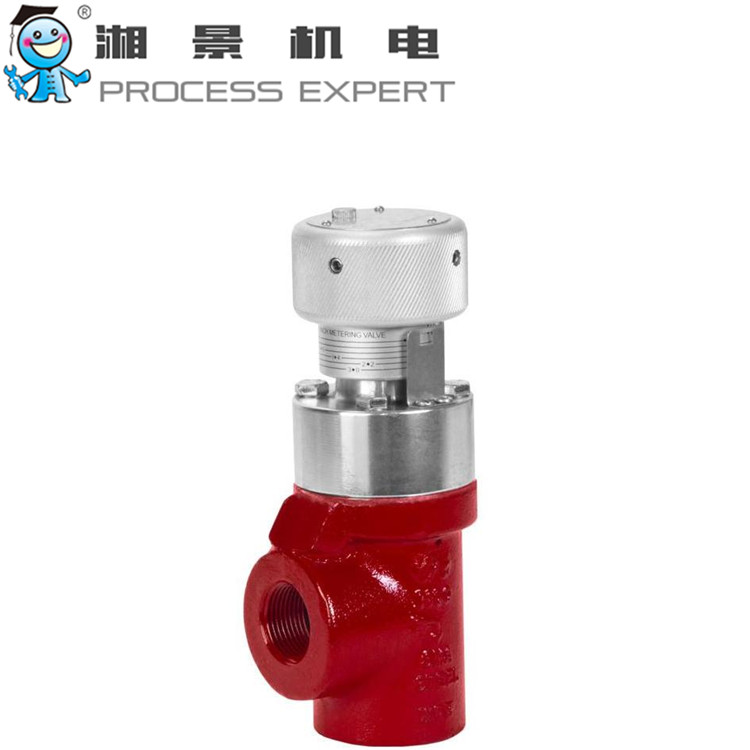

Can be used to meter or control flow of liquids and/or gases on meter runs or flow lines. It can be used as a choke under low pressure drop conditions where freezing is not a problem. Used any time a reference control point is required in 64ths of an inch opening.
Specifications
- Connection Size: 1 "
- Connection Type: Female NPT
- Body Style: Angled Body
- Body Material: Steel
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 0.5 "
- Trim Type: Equal Percentage
- Seal Class: Class IV
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 4000 psig
- Operation: Manual
- Catalog Page: E1:50.2
- Repair Kit P/N: RSH
