品牌:kimray凯姆雷
最大工作压力:1480psig
电话:13122118801
咨询发送询价

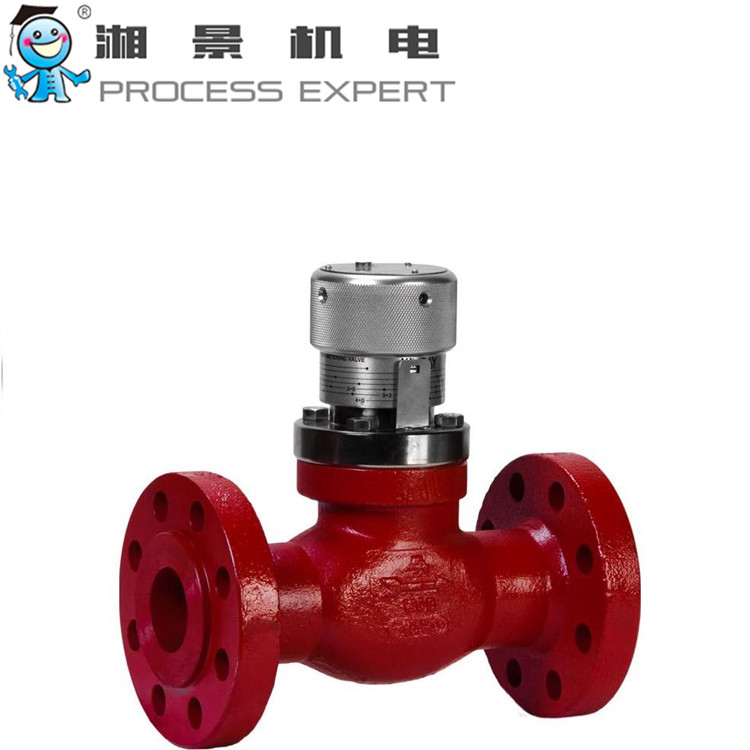

Can be used to meter or control flow of liquids and/or gases on meter runs or flow lines. It can be used as a choke under low pressure drop conditions where freezing is not a problem. Used any time a reference control point is required in 64ths of an inch opening.
Specifications
- Connection Size: 2 "
- Connection Type: 600 RF
- Body Style: Through Body
- Body Material: Steel
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 0.625 "
- Trim Type: Equal Percentage
- Seal Class: Class IV
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 1480 psig
- Operation: Manual
- Catalog Page: E1:50.3
- Face-to-Face Length: 11.25 "
- Repair Kit P/N: RSE
