品牌:kimray凯姆雷
最大工作压力:250psig
电话:13122118801
咨询发送询价

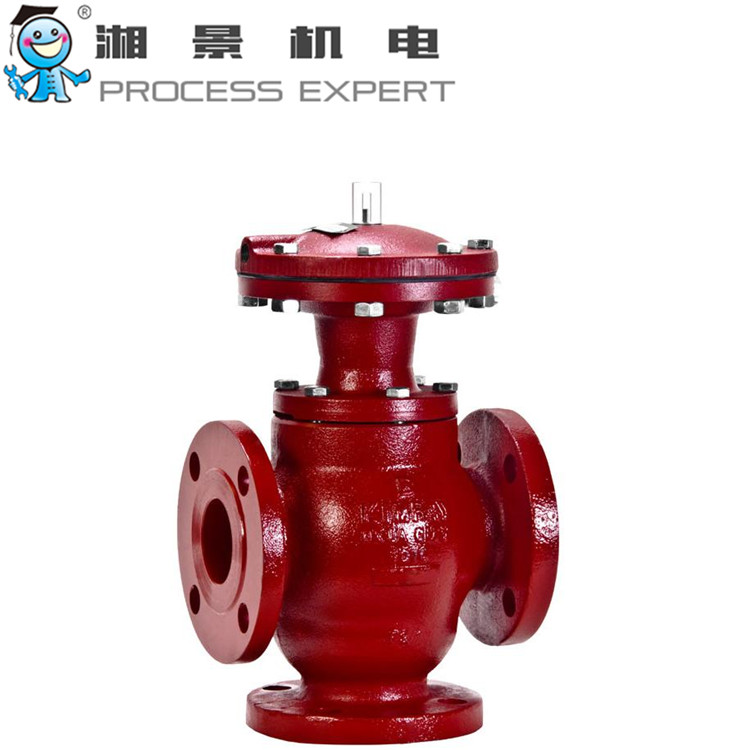

For dividing flow into two directions, with the ability to seal off flow in one or the other direction.
Specifications
- Connection Size: 2 "
- Connection Type: 150 RF
- Body Style: 3 Way
- Body Material: Cast Ductile
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 1.5 "
- Seal Class: Class VI
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 250 psig
- Max. Set Point Pressure: 250 psig
- Operation: Pneumatic
- 100% Open Cv of Bottom Port: 32
- Catalog Page: E4:10.3
- Face-to-Face Length: 8.19 "
- Repair Kit P/N: RHX
