品牌:kimray凯姆雷
最大工作压力:3000psig
发货:3天内
电话:13122118801
咨询发送询价

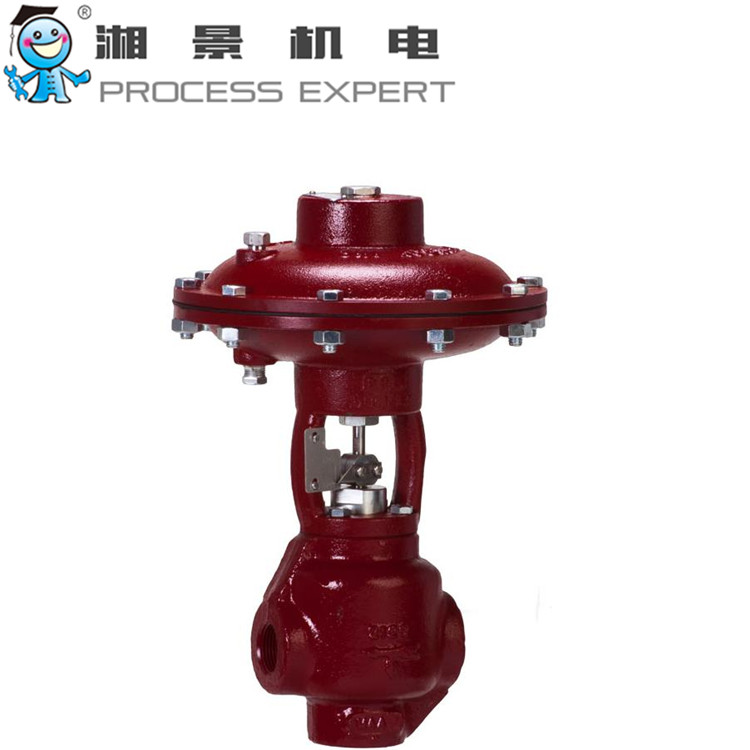

For dividing flow into two directions, with the ability to seal off flow in one or the other direction.
Specifications
- Connection Size: 1 "
- Connection Type: Female NPT
- Body Style: 3 Way
- Body Material: Steel
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 0.817 "
- Seal Class: Class VI
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 3000 psig
- Max. Set Point Pressure: 3000 psig
- Operation: Pneumatic
- 100% Open Cv of Bottom Port: 13.8
- Catalog Page: E4:30.1
- Face-to-Face Length: 5.16 "
- Repair Kit P/N: RFC
