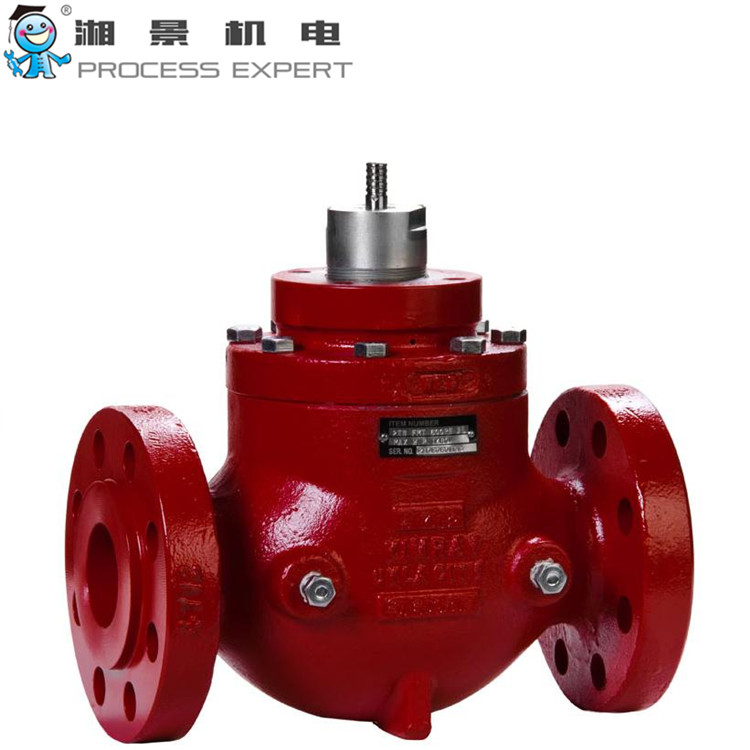

2" thru 10" valves. Used as Dump Valve or Pressure Regulator. Our Cage Guided valves have larger trim sizes for larger valve coefficients (Cv) compared to the Stem Guided series. "Cage-guided" refers to the cage around the trim guiding the trim into its seat. "Balanced" means the pressure below the seat is communicated to the top of the seat so that the pressures are balanced, allowing for operation in high pressure differentials. All valves in this series have the option of emissions-free electric actuation.
Specifications
- Connection Size: 2 "
- Connection Type: 600 RF
- Body Style: Through Body
- Body Material: Steel
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 2 "
- Trim Type: Equal Percentage
- Seal Class: Class VI
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 1480 psig
- Catalog Page: E1:15.2
- Face-to-Face Length: 11.25 "
- Repair Kit P/N: RUR
