品牌:kimray凯姆雷
.:.
电话:13122118801
咨询发送询价

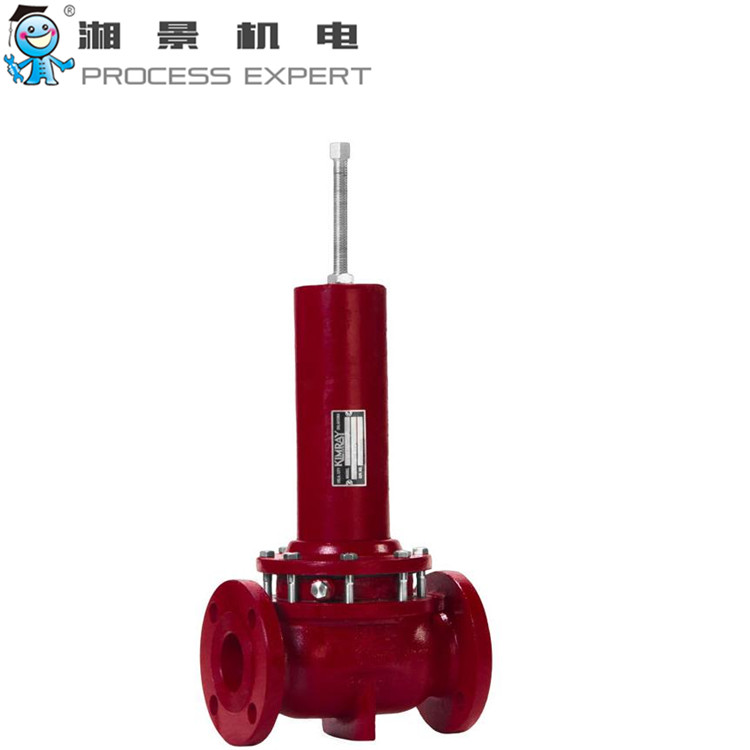

Commonly used as a Burner Valve or Liquid Dump Valve for low pressure vessels
Specifications
- Connection Size: 2 "
- Connection Type: 150 RF
- Body Style: Through Body
- Body Material: Cast Ductile
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 2 "
- Trim Type: Modified EP
- Seal Class: Class VI
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 250 psig
- Actuator Spring Nominal Pressure: 250 psig
- Valve Fail Position: Closed
- Operation: Pneumatic
- Catalog Page: E2:90.3
- Face-to-Face Length: 9 "
