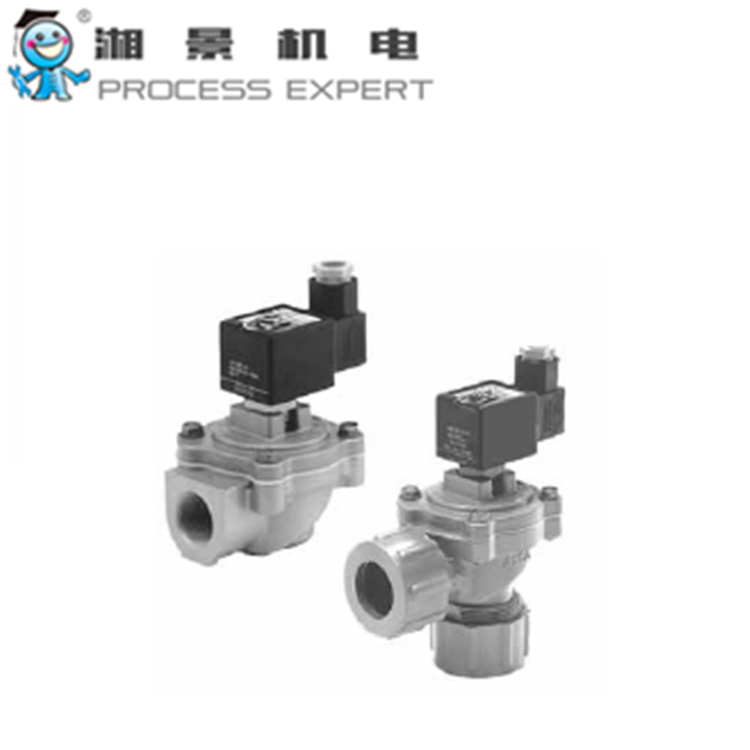

FEATURES• The diaphragm pulse valves are especially designed for dust collector service
applications, combining high flow, long life and extremely fast opening and closing to
produce reliable and economical operation
• The high flow, angle type bodies, springless construction, in combination with the
special diaphragm assemblies give the unique operating features required for dust
collector service applications
• Integral compression fittings for fast, easy, secure installation
• Built-in silencers reduce noise and prevent foreign particles from entering the valve
• The integral operators are provided with epoxy moulded F-class coils.
Various optional waterproof and explosionproof solenoids for use in potentially
explosive atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be
mounted on the same basic valve
• The valves satisfy all relevant EC directives
STANDARD VOLTAGES
DC (=) : 24V
AC (~) : 24V - 100V -110V - 200V - 220V - 230V - 240V / 50 - 60 Hz
