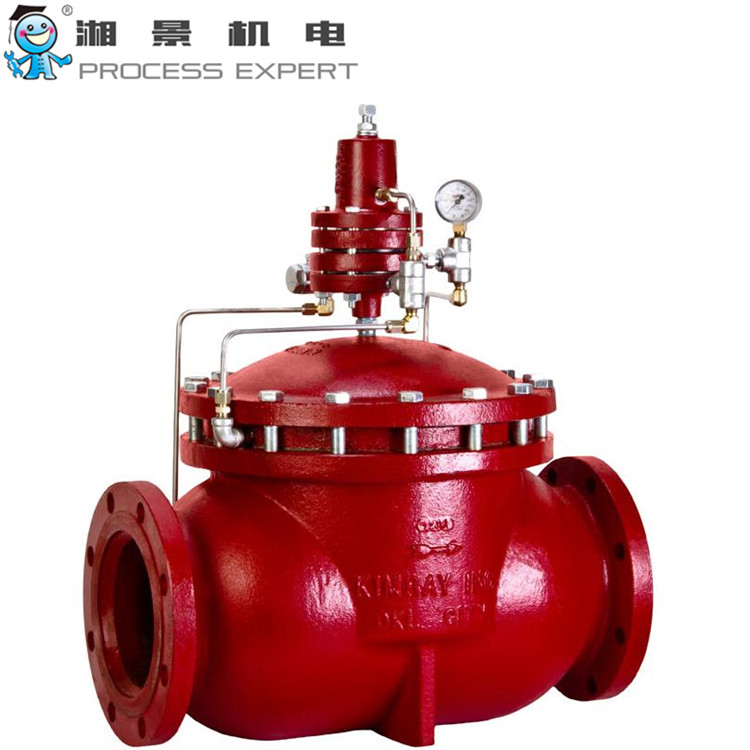

Control pressure downstream of the valve by adjusting the set point to the desired max downstream pressure. Commonly used as a suction control valve on compressors.Set point increases 1 psi for every 100 psi upstream increase, and vice versa. Utilizes process gas to operate integrated pilot. Gas must be clean and dry.
Specifications
Connection Size: 6 "
Connection Type: 150 RF
Body Style: Through Body
Body Material: Steel
Option Available for NACE MR0175 compliance or certification.
Trim Size: 6 "
Trim Type: Equal Percentage
Seal Class: Class VI
Process Fluid: Gas
Pilot Type: Vent
Max. Working Pressure: 285 psig
Min. Set Point Pressure: 10 psig
Max. Set Point Pressure: 285 psig
Operation: Pneumatic
Catalog Page: A:30.4
Face-to-Face Length: 21.94 "
Repair Kit P/N: RRX
