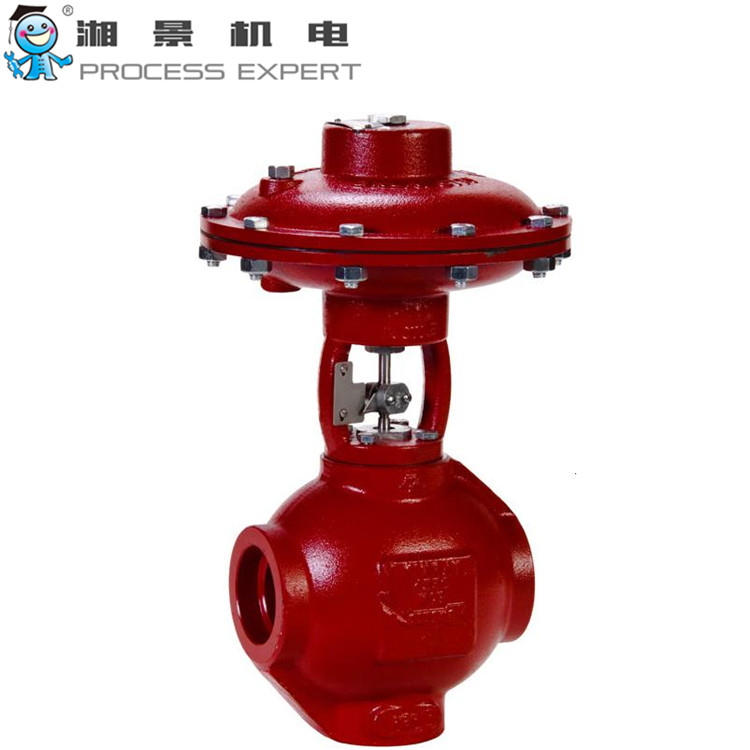

For splitting flow into two directions, but not for sealing off in either direction.
Specifications
- Connection Size: 2 "
- Connection Type: Socket Weld
- Body Style: 3 Way
- Body Material: Steel
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 1.5 "
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 6000 psig
- Max. Set Point Pressure: 6000 psig
- Operation: Pneumatic
- 100% Open Cv of Bottom Port: 38.1
- Catalog Page: E4:20.2
- Face-to-Face Length: 6.91 "
- Repair Kit P/N: RRG
