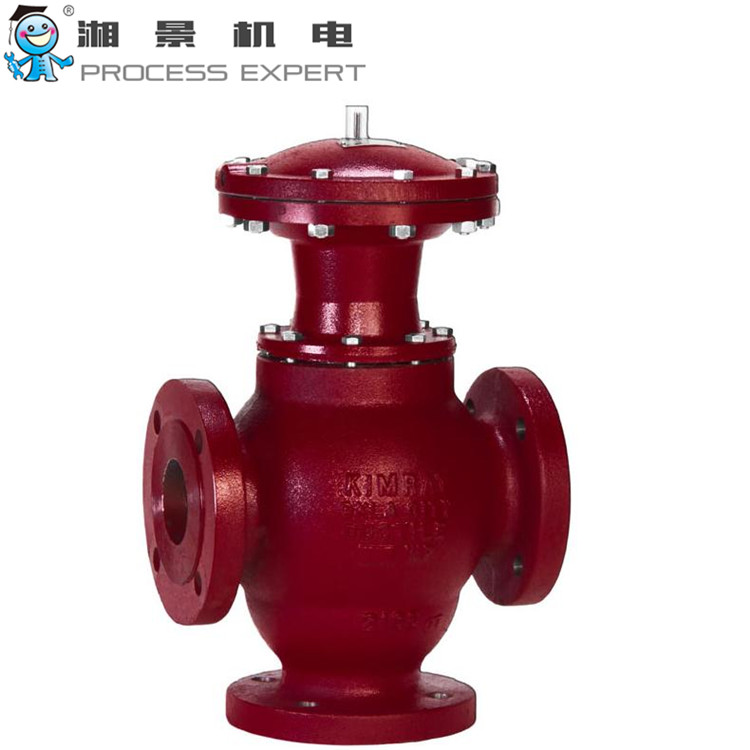

For dividing flow into two directions, with the ability to seal off flow in one or the other direction.
Specifications
- Connection Size: 3 "
- Connection Type: 150 RF
- Body Style: 3 Way
- Body Material: Cast Ductile
- Option Available for NACE MR0175 compliance or certification.
- Trim Size: 2.25 "
- Seal Class: Class VI
- Process Fluid: Liquid and Gas
- Max. Working Pressure: 250 psig
- Max. Set Point Pressure: 250 psig
- Operation: Pneumatic
- 100% Open Cv of Bottom Port: 72
- Catalog Page: E4:10.4
- Face-to-Face Length: 11.36 "
- Repair Kit P/N: RHT
