CARTRIDGE filters designed in accordance with the provisions of DIN 3386 standards can be used with all types of natural gas, LPG or non-corrosive gases. These filters are widely used to protect control devices, pressure regulators, meters and on systems that require a high degree of filtration. The high filtration capacity of the cartridges and their broad surface allow separation of both dust and solid particles, reducing maintenance times for equipment installed downstream.Main Features:

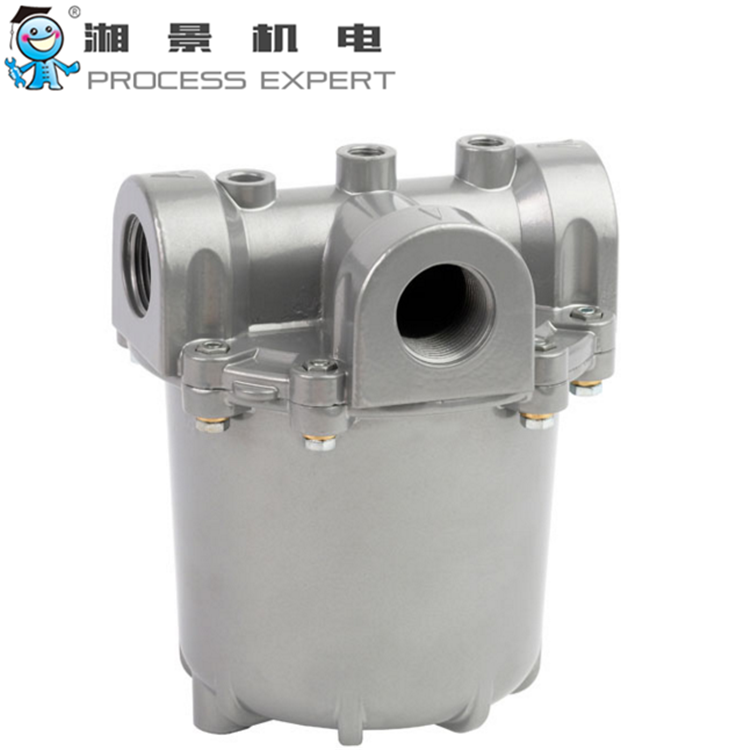

CARTRIDGE FILTER WITH THREADED OR FLANGED CONNECTIONS
Essential features include:
• Cloth filter cartridge 5ìm?? (metallic upon request)
• Max. allowable pressure: 10 bar
• Max. working pressure: Pu max 10 bar
• Max. operating temperature: -15 °C … + 80 °C
• Threaded series connections: UNI-ISO 7/1
• Flanged series connections: EN 1092
ACCESSORIES:
• Test point Std
• Manometer
• DP clogging indicator
ACCORDING TO 90/396 CEE DIRECTIVE
