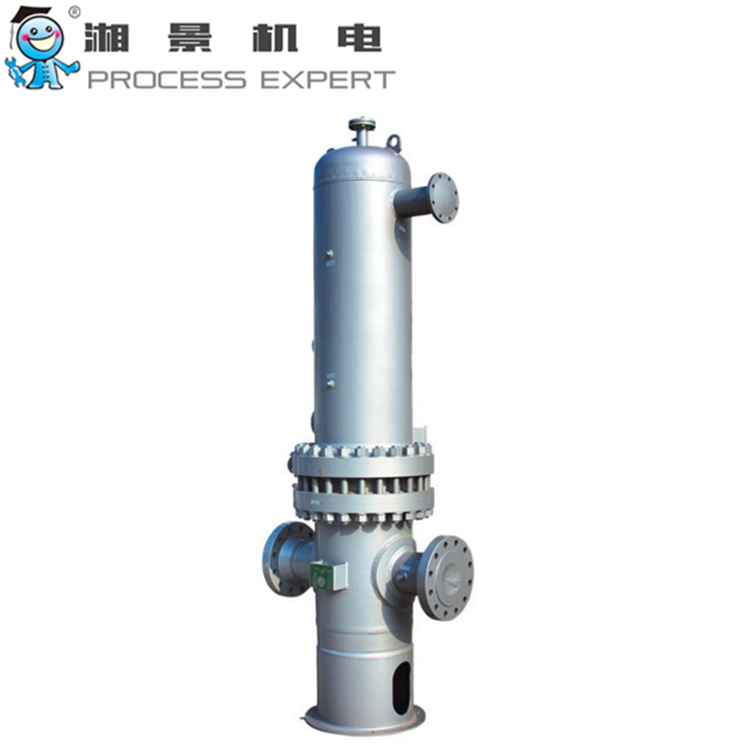

KSI is a heat exchanger for preheating of natural gas, town gas, air, propane and other non-aggressive gases BEU according to TEMA Code, with bundle fully removable*.Main features
• Heating fluid: hot and superheated water, steam
• Maximum working pressure: according to design conditions and code
• On request: design conditions as required by rating of ANSI B16.5 standard
• On request: same design pressure for both tube and shell side with shut off device, ball valves and pneumatic actuator
• Maximum working temperature: 100 °C (up to 250 °C for superheated water and steam)
• Gas nozzle connections ANSI 600-300
• Water nozzle connections PN 16, ANSI 150 (ANSI 300 or 600 on request)
• Screw connections for condensate drain
• Screwed connections for relief valve on top shell side
• Flanged connection for relief valve on top shell side
• Double connections for pre-heating of gas on pressure regulators pilot loop
Available equipment (upon request)
• Drain ball valves
• Pressure gauge
• Pressure switch
• Safety valve on tube side
• Safety valve on shell side
• Air self-exhausting device
• Inlet/outlet gas temperature gauge
*Not for KS/0.5
