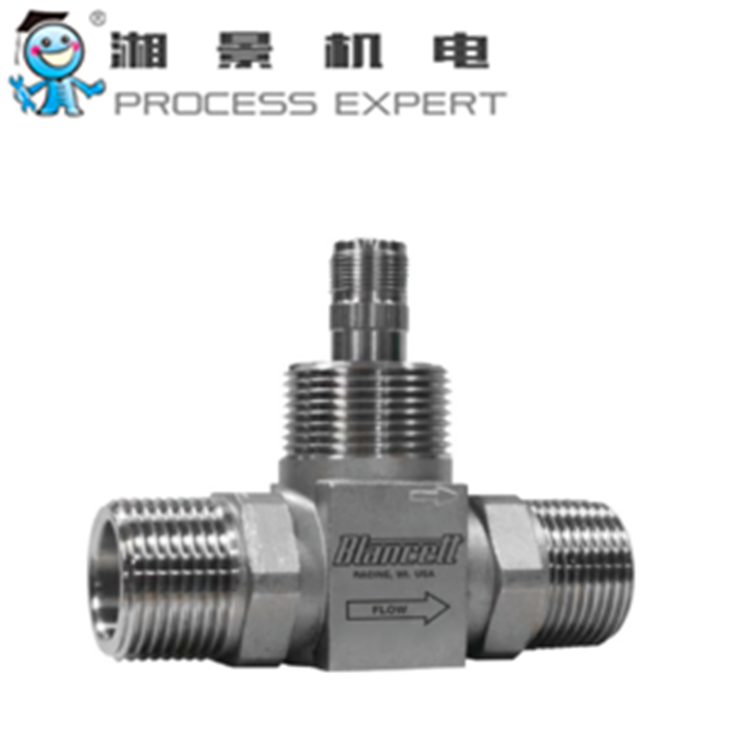

The Model 1100 turbine flow meter is the ideal meter for liquid flow measurement both on and off the oilfield. This meter maintains measurement accuracy and mechanical integrity in the corrosive and abrasive fluids commonly found in oil field water flood projects and many industrial applications.
BENEFITS
- Cost-effective solution for turbine flow meter applications
- Offers long service life in severe operating environments
FEATURES
- Rugged 316 stainless steel housing and rotor support assemblies with CD4MCU stainless steel rotor
- Abrasive-resistant tungsten carbide rotor shaft and journal bearings
- Available in NPT, BSP, Victaulic®, flange, or hose barbed-end connections
- NIST traceable calibration
- Integrate electronically with B2800 Flow Monitor, K-factor Scaler, or the F to I/F to V Intelligent Converter Field replaceable repair kits (the kits allow for turbine replacement without loss of accuracy)
SPECIFICATIONS
Temperature Range
?150…425 °F
Flow Range
0.6…5000 gpm
Pressure Range
Up to 5000 PSI
Accuracy
±1 %
Canadian Registration Numbers
| Province | CRN |
| Alberta (ABSA) | 0F5539.2 |
| British Columbia | 0F5539.21 |
| Saskatchewan | 0F5539.23 |
| Manitoba | 0F5539.24 |
| Quebec | 0F5539.26 |
ADDITIonAL SPECIFICATIONS
Application Examples
Circulating-Oil Flow Monitoring in a Harsh Mining Industry Environment
Blancett Meters Help Hydraulic Fracturing Companies
Fracking
Oil Fields
Refining
Chemical Dispensing
Industries
Chemical, Refining & Petrochemical
Concrete Production
Oil & Gas
Process or Industrial
Water & Wastewater Treatment
Concrete Production
Oil & Gas
Process or Industrial
Water & Wastewater Treatment
