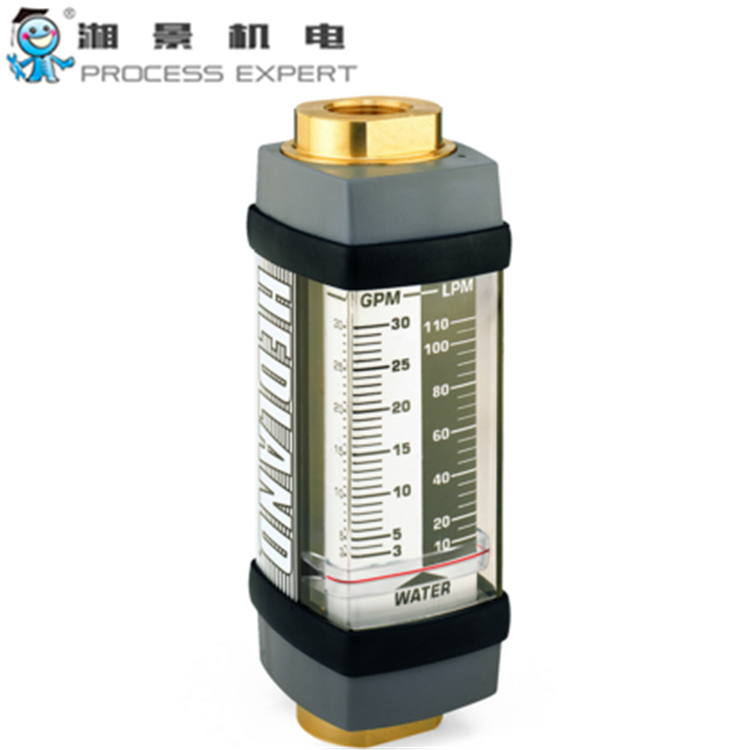

咨询Hedland water and other fluid meters are designed to monitor fluid flow rates of water and solvents. These meters closely resemble their water-based fluid counterpart, with the exception of different internal wetted components for fluid compatibility. The standard meters provide an economical solution for operators needing a quick, visual indication of flow, without the use of additional electronics. A variety of end fittings and different material types create product flexibility and material compatibility. Expansion options are available to allow integration into remote systems via electronic output.
The Hedland Flow Meter is a variable area (rotameter) instrument. A precision machined, sharp-edged Orifice is located within the piston assembly and forms an annular opening with the contoured metering cone. The piston assembly carries a cylindrical PPS/ ceramic magnet that is magnetically coupled to an external flow Indicator that moves precisely, in direct response to movement of the piston. A calibrated spring opposes flow in the forward direction. This spring decreases viscosity sensitivity and allows the flow meter to be used in any position, including inverted.
BENEFITS
- No electronics needed to obtain a reading
- Can be installed in any position / orientation without affecting accuracy
- The most readable product in its class
- Does not require special plumbing or accessories to stabilize turbulent flow
- Magnetic coupling eliminates the need for mechanical linkages that wear, loosen and leak over the functional life of competitive meters
- Custom scale options to meet exact application requirements
FEATURES
- Direct reading
- Internal calibrated spring
- 360° rotatable guard/scale
- Easier-to-read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Special scales available
SPECIFICATIONS
(1/4 inch only) ±7 %
ADDITIonAL SPECIFICATIONS
Hydraulic Components
Water Flow Monitoring
Water Cooled Heat Sinks
Cold Water in Chiller Systems
Reverse Osmosis Systems
Foam Additives
Control Flushing
Water Batching
Concrete Mixing
Snow Making Equipment
Chemical, Refining & Petrochemical
Irrigation
Oil & Gas
Process or Industrial
Test Equipment & Services
Water & Wastewater Treatment
