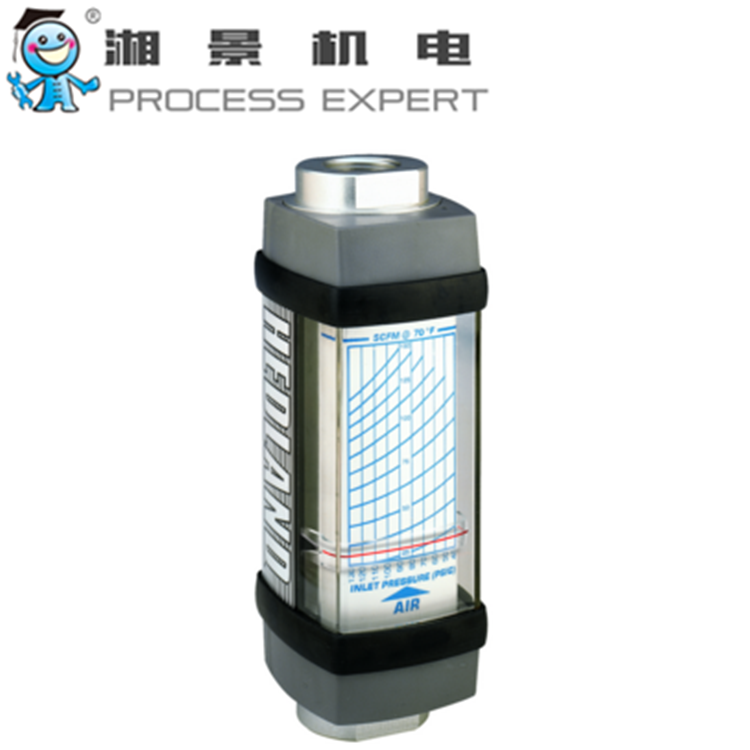

咨询Hedland air/compressed gas meters are designed for use in pneumatic systems. Additionally, with a variety of end fittings and different material types, these meters can be used in a wide range of industrial gas flow processes as well as monitoring compressor efficiencies and pneumatic tool usage. Standard meters provide an economical solution for operators needing a quick, visual indication of flow, without the use of additional electronics. Expansion options are available to allow integration into remote systems via electronic output.
The Hedland Flow Meter is a variable area (rotameter) instrument. A precision machined, sharp-edged Orifice is located within the piston assembly and forms an annular opening with the contoured metering cone. The piston assembly carries a cylindrical PPS/ ceramic magnet that is magnetically coupled to an external flow Indicator that moves precisely, in direct response to movement of the piston. A calibrated spring opposes flow in the forward direction. This spring decreases viscosity sensitivity and allows the flow meter to be used in any position, including inverted.
BENEFITS
- No electronics needed to obtain a reading
- Can be installed in any position / orientation without affecting accuracy
- The most readable product in its class
- Does not require special plumbing or accessories to stabilize turbulent flow
- Magnetic coupling eliminates the need for mechanical linkages that wear, loosen and leak over the functional life of competitive meters
- Custom scale options to meet exact application requirements
FEATURES
- Direct reading
- Internal calibrated spring
- 360° rotatable guard/scale
- Easier-to-read linear scale
- No flow straighteners or special piping required
- Relatively insensitive to shock and vibration
- Special scales available
SPECIFICATIONS
(1/4 inch only) ±7 %
ADDITIonAL SPECIFICATIONS
Compressor Efficiency Monitoring
Pneumatic Tools
Gas/Air Flow Monitoring
Air Batching
Aviation & Aerospace
Chemical, Refining & Petrochemical
Oil & Gas
Process or Industrial
Test Equipment & Services
Water & Wastewater Treatment
