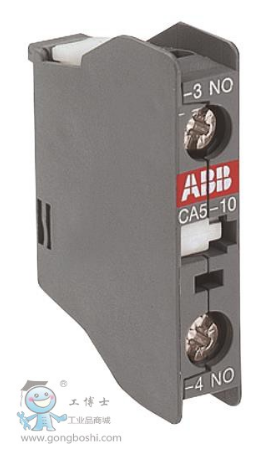

ABB机器人配件模块CA5-10 1SBN010010R1010 接触块

CA5-10

Degree of Protection:acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
IIT Publishing Status:Level 0 - Information enabled
Maximum Electrical Switching Frequency:1200 cycles per hour
Maximum Mechanical Switching Frequency:3600 cycles per hour
Mechanical Durability:A9 ... A75 10 million
A95 ... A110 3 million
Minimum Switching Capacity:A9 ... A75 17 / 5 volt per milliamp
A95 ... A110 24 / 50 volt per milliamp
Mounting on Contactors:A 9...A 75
Mounting Position:Front face
Number of Auxiliary Contacts NO:1
Order Multiple:10 piece
Power Loss:at Rated Operating Conditions per Pole 0.1 W
Product Main Type:Accessories for Block Contactors
Product Name:Auxiliary Contact Block
Rated Breaking Capacity acc. to IEC 60947-5-1:10 x Ie AC-15
Rated Frequency (f):Supply Circuit 50 Hz
Supply Circuit 60 Hz
Rated Insulation Voltage (Ui):acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
acc. to UL/CSA 600 V
Rated Making Capacity acc. to IEC 60947-5-1:10 x Ie AC-15
Rated Operational Current AC-15 (Ie):(220 / 240 V) 4 A
(24 / 127 V) 6 A
(380 / 440 V) 3 A
(500 V) 2 A
(690 V) 2 A
Rated Operational Current DC-13 (Ie):(125 V) 0.55 / 69 A
(24 V) 6 / 144 A
(250 V) 0.3 / 75 A
(48 V) 2.8 / 134 A
(72 V) 1 / 72 A
Rated Operational Voltage:Auxiliary Circuit 690 V
Main Circuit 24 V
Rated Short-time Withstand Current (Icw):for 1 s 140.0 A
Remarks:100
Technical Information:AUXILIARY SWITCH BLOCK
Terminal Type:Screw Terminals
