品牌:西门子
系列:S7-1500 PLC
发货:3天内
电话:17312666086
咨询西门子PLC S7-1500系列
订货号：6ES7512-1DK01-0AB0

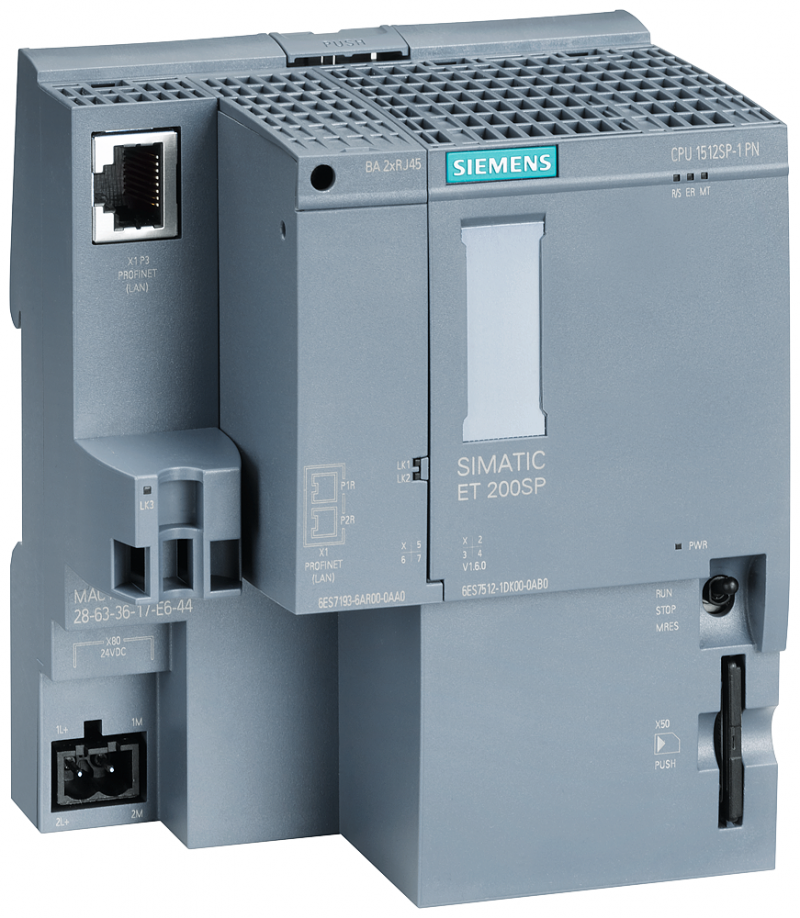

类型：CPU 1512SP-1 PN 针对 ET 200SP
产品：（7.2***UTO DN）SIMATIC DP，CPU 1512SP-1 PN 针对 ET 200SP， 中央处理器，带 主存储器 200 KB 用于 程序及 1MByte 用于数据， 第 1 个接口：PROFINET IRT 含 3 端口交换机， 48 ns 比特性能表现， 需要 SIMATIC 存储卡， 需要总线适配器用于 端口 1 和 2 SIMATIC ET 200SP is a 模块型, scalable, and highly flexible distributed I/O system. With its small footprint, it is particularly well-suited for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200SP CPU or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200SP can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a very comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature / HS High Speed) are also available. For price-sensitive applications, there are modules with basic functions (BA). The advantage of the ET 200SP system is in its ease of application, such as through the free selection of the PROFINET connection technology via the BusAdapter, the tool-free wiring by means of push-in technology, improved accessibility of the wiring due to a new arrangement of the spring releases, in addition to the associated conductor aperture and the channel-precise diagnostic functions. The availability and productivity of the machine are ensured by the capability of swapping modules and terminal boxes during operation, the so-called "hot swapping". Interface modules with integrated CPU and PROFINET connections are available for SIMATIC ET 200SP. The functionality corresponds to that of a CPU of the SIMATIC S7-1500 family. A SIMATIC Memory Card is required for the operation of this module.
