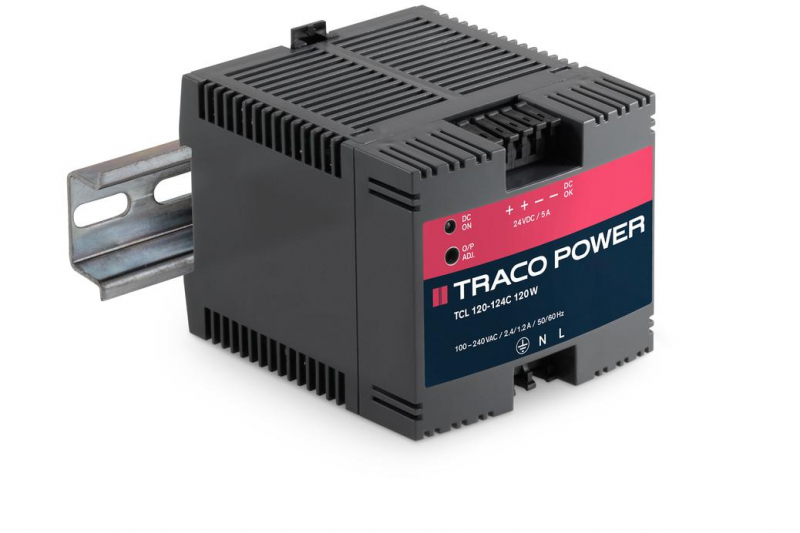

The TRACOPOWER TCL series is a family of DIN-rail power supplies with an excellent price/performance ratio. With tightly regulated output voltage and high immunity against electrical disturbances on the mains they provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment. Compact size, light weight, easy snap-on mounting on DIN-rails and the choice of two connection terminal versions are other features of these power supplies. The TCL series complies with all major safety standards for Europe (EN60950-1, EN50178), North America (UL/cUL 60950, UL 508 listed) or elsewhere in the world (CB-Report).TRACOPOWER TCL系列是din导轨电源系列，具有优异的性价比。它们具有严格调节的输出电压和对市电干扰的高抗扰度，为工业过程控制、机床和其他暴露在艰难工业环境中的设备中的敏感负载提供可靠的电源。这些电源的其他特点是体积小巧，重量轻，易于安装在din导轨上，并可选择两种连接端子版本。TCL系列符合欧洲(EN60950-1, EN50178)，北美(UL/cUL 60950, UL 508列出)或世界其他地方(CB-Report)的所有主要安全标准。
规范
输出电压
12伏直流
输出调整1
12 - 15伏直流
输出电流
8000毫安
额定功率
120 W
输出数
单
输入电压
85-264伏/ 85-375伏
住房类型
塑料盒
越来越多的类型
导轨安装
连接类型
长度
100毫米
宽度
85毫米
深度
75毫米
效率
88%
***高温度
70°C
***低温度
-10°C
