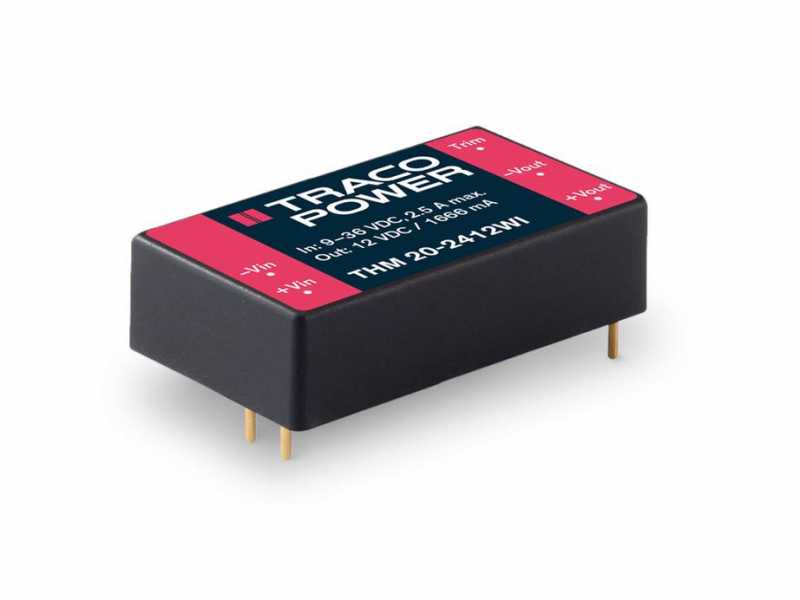

The THM 20WI series is a range of medical 20 Watt DC/DC converters in 1.6” x 1.0” plastic package and with ultra wide 4:1 input voltage range. They provide a reinforced isolation system for 5000 VAC isolation and a very low leakage current of less than 2.5 µA. The units are approved to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP and come along with an ISO 14971 risk management file. Design and production conform to the quality management system ISO 13485. With a high efficiency of up to 89% and highest grade components the converters can reliably operate in an ambient temperature range of ?40°C up to +80°C. They constitute a reliable solution not only for medical equipment but also for demanding ranges of application such as transportation, control & measurement or IGBT drivers.THM 20WI系列是一系列医用20瓦DC/DC转换器，采用1.6“x 1.0”塑料封装，具有超宽4:1输入电压范围。它们为5000 VAC隔离和小于2.5µa的极低泄漏电流提供了强化隔离系统。该设备已通过IEC/EN/ES 60601-1第三版2 x MOPP认证，并附带ISO 14971风险管理文件。设计和生产符合ISO 13485质量管理体系。具有高达89%的**率和***高等级的组件，转换器可以在-40°C至+80°C的环境温度范围内可靠地工作。它
